High Transmittance 64 LED Multi Optical PMMA Lens For Led Tunnel Light
A simple Lens consists of a single piece of material, while a compound Lens consists of several
simple lenses (elements), usually along a common axis.
Lenses are made from transparent materials such as glass, polymers etc which are ground and
polished to a desired shape. A Lens can focus light to form an image.
- This LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps like 30W,60W,90W and so on .
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology.
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
| Part Number | JY-BAA6460P-23575 |
| Beam angle | 60 Degree |
| Dimension | L236*W70 |
| Lens Material | PMMA / PC |
| Transmittance | 93% |
| Working Temperature | Lens ≤ 90℃ |

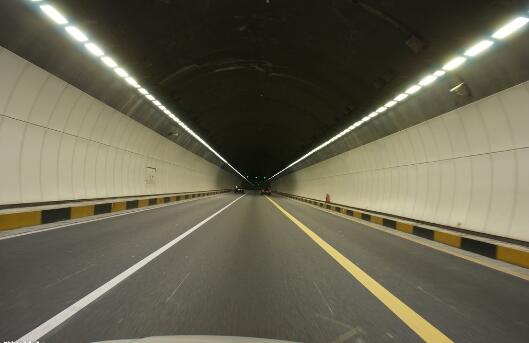

| Application | LED Tunnel Light |
Delivery and Shipping:
| Trade Terms | EXW, FOB, CNF, CIF |
| Payment Terms | T/T , PayPal , Western Union, Moneygram |
| Lead Time | 1-2 working days for samples order, 5-7 working days for bulk order |
| Shipment Terms | By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc |
WHAT ARE LED OPTICS?
LED lighting fixtures utilise at least one type of secondary optic to alter the beam of light coming from
the LED source. At RS Components we have three families for secondary LED optics: Lenses,
Reflectors and Optic & Holder Kits.
Led Optical Lenses used in the street light, high way led lamp, tunnel lamp, square lamp, road lamp,
city lighting, parking spot lamp, track lighting fixtures, scenery area, retail lighting and other applications where high luminous flux is desired.
LED lens Drawing:
IES:
Heat Sink:
Product Tags:
|
|
High Transmittance Multi LED Lens ROHS Certificated For LED Tunnel Light Images
|
